Magnets
September 10, 2021 by admin

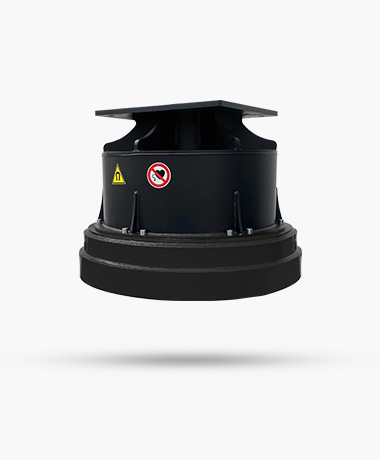

Hydraulic Electromagnet
- Home
- Magnet
75IP
| Technical Specifications |
|
| Excavator Weight Class : |
8 – 15 Ton |
| Operating Weight : |
680 kg |
| Flow Range : |
50 – 120 LPM |
| Max. Pressure |
200 Bar |
| Diameter |
750 mm |
| Power |
2.6 KW |
| Voltage |
220 V |
|
85IP
| Technical Specifications |
|
| Excavator Weight Class : |
10 – 16 Ton |
| Operating Weight : |
820 Kg |
| Flow Range : |
50-120 LPM |
| Max. Pressure |
200 Bar |
| Diameter |
850 mm |
| Power |
3.4 KW |
| Voltage |
220 V |
|
96IP
| Technical Specifications |
|
| Excavator Weight Class : |
13 – 20 Ton |
| Operating Weight : |
940 Kg |
| Flow Range : |
60-130 LPM |
| Max. Pressure |
200 Bar |
| Diameter |
960 mm |
| Power |
4.5 KW |
| Voltage |
220 V |
|
105IP
| Technical Specifications |
|
| Excavator Weight Class : |
17 – 25 Ton |
| Operating Weight : |
1300 Kg |
| Flow Range : |
70-140 LPM |
| Max. Pressure |
200 Bar |
| Diameter |
1050 mm |
| Power |
5.5 KW |
| Voltage |
220 V |
|
114IP
| Technical Specifications |
|
| Excavator Weight Class : |
20 – 28 Ton |
| Operating Weight : |
1400 Kg |
| Flow Range : |
80-140 LPM |
| Max. Pressure |
200 Bar |
| Diameter |
1140 mm |
| Power |
6 KW |
| Voltage |
220 V |
|
126IP
| Technical Specifications |
|
| Excavator Weight Class : |
24 – 35 Ton |
| Operating Weight : |
1700 Kg |
| Flow Range : |
100 – 150 LPM |
| Max. Pressure |
200 Bar |
| Diameter |
1260 mm |
| Power |
7.5 KW |
| Voltage |
220 V |
|
150IP
| Technical Specifications |
|
| Excavator Weight Class : |
30 – 40 Ton |
| Operating Weight : |
2650 Kg |
| Flow Range : |
120 – 150LPM |
| Max. Pressure |
200 Bar |
| Diameter |
1500 mm |
| Power |
12 KW |
| Voltage |
220 V |
|
Disclaimer:
Specifications and features are subject to change without prior notice . The machine depicted may vary from
the actual machine. Please contact our nearest office for latest specifications.
Accessories shown here are not part of the standard equipment. Performance of the machine may vary with site
and operating conditions encountered.
